Flexible Electric Cable 2 Core 3 Core

Flexible Electric Cable 2 Core 3 Core A 3-core electrical cable refers to a type of cable that consists of three conductors enclosed in a protective sheath. The "3-core" designation means that there are three individual conductors within the cable. 2 core cable does not have a grounding wire. It is suitable for use with any electrical device that has a non-conductive exterior.

The "mm" refers to the cross-sectional area of the conductors measured in square millimeters. This indicates the thickness or gauge of the conductors and is an important factor in determining the cable's current-carrying capacity.

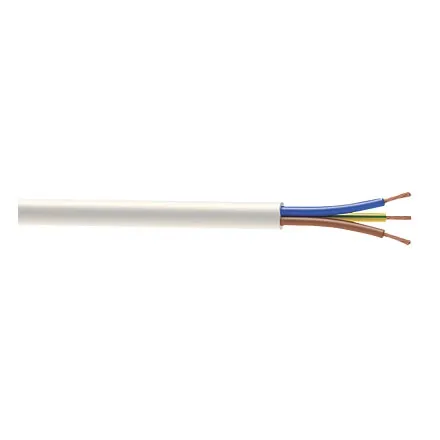

There are three individual conductors within 3 core cable, which are typically color-coded for identification purposes. Common color codes include brown, blue, and green/yellow, but this may vary depending on regional electrical standards. Each conductor is insulated separately to prevent electrical contact between them. The insulation material used in the cable provides electrical insulation and protection from external influences. The conductors are enclosed within a protective sheath, which provides mechanical strength and additional insulation.

A 3-core electrical cable with a 1.5mm conductor size is commonly used in domestic and light commercial electrical installations. It is suitable for various applications, including power distribution, lighting circuits, and small appliances.

The current-carrying capacity of the cable depends on factors such as the insulation material, installation method, and ambient temperature. Consult local electrical codes or an electrician to determine the appropriate current rating for the specific cable used in your location.

Note: It's important to consult with a qualified electrician or adhere to local electrical regulations and standards when selecting and installing electrical cables to ensure safety and compliance.

If you have specific questions or need further information about using a 3-core electrical cable with a 1.5mm conductor size for a particular application, it's recommended to consult with an electrician or an expert in electrical systems.

3 x 1.5 H05Z1Z1-F Round White LSF 10 mtr A 3-core electrical cable with a 1.5mm conductor size is commonly used in domestic and light commercial electrical installations. It is suitable for various applications, including power distribution, lighting circuits, and small appliances.

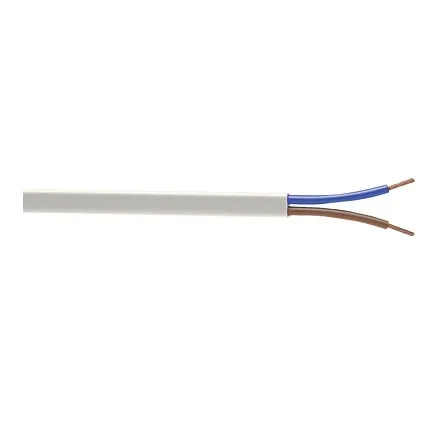

2 x .75 H03Z1Z1-F Round White LSF 10 mtr is used for indoors and outdoors in dry conditions. Applications include table lamps, small power tools and other low power applications and devices.

3 x .75 H03Z1Z1-F Round White LSF 10 mtr is mainly used for two-way lighting installations and in other situations that require a permanent and switched live along with a neutral, such as central heating, some types of lighting and extractor fans.

3 x .75 H03Z1Z1-F Round White LSF 5 mtr is mainly used for two-way lighting installations and in other situations that require a permanent and switched live along with a neutral, such as central heating, some types of lighting and extractor fans.

3 x 1.5 H05Z1Z1-F Round White LSF 5 mtr A 3-core electrical cable with a 1.5mm conductor size is commonly used in domestic and light commercial electrical installations. It is suitable for various applications, including power distribution, lighting circuits, and small appliances.

3 x 2.5 H05Z1Z1-F Round White LSF 10 mtr 3 core 2.5mmis suitable for permanent installations where a power and control connection are required. 3 core flexible cable is useful for handling equiptment, mobile power supplies, worksites, stage and audiovisual equipment.

3 x 2.5 H05Z1Z1-F Round White LSF 5 mtr 3 core 2.5mmis suitable for permanent installations where a power and control connection are required. 3 core flexible cable is useful for handling equiptment, mobile power supplies, worksites, stage and audiovisual equipment.
